90%
Labor savings
Single-point lifting and set down dramatically reduces labor and equipment time vs. traditional rip rap and gabion methods.
vs. rip rap & gabions
Engineered Scour & Erosion Protection
Texas Tuff Rock Bags™
Heavy-Duty Scour & Erosion Protection
Heavy-duty polyester mesh bags filled with rock — engineered to armor bridges, shorelines, ports, and offshore infrastructure against scour and erosion. ASTM/ISO-tested for a long-term design life.
In stock — ready to ship
Engineering response in 1 business day
- ASTM/ISO Tensile-Tested
- TRI Environmental/SGS/GTS Lab-Validated
- Long-Term Design Life
- 30-Year UV Protection
- 5–12 Min Deployment
- Engineering Support
About FES Solutions
Engineered scour protection,
backed by real support.
FES Solutions delivers Texas Tuff Rock Bags™ — heavy-duty polyester mesh bags filled on-site with rock to armor slopes, banks, and structures against scour and erosion. Engineered to ASTM/ISO standards, validated by TRI Environmental/SGS/GTS, and engineered for long-term durability in water.
Our engineering team responds within one business day with sizing, lead time, and pricing — so you can specify with confidence and deploy when it matters.
Decades
In-water design life
3×
ASTM/ISO standards
5–12min
Per bag deployment
1day
Eng. response
ASTM/ISO Standards
TRI Environmental/SGS/GTS laboratory verification
SGS
Engineering support
Lake Tawakoni
Concrete Protection & Reinforcement
Northeast Texas
Product Overview
Flexible, sustainable rock armor.
Texas Tuff Rock Bags™ are flexible, sustainable rock-filled net bags — a high-performance alternative to concrete, gabions, blockstone, and rip rap revetments. The mesh is woven from virgin polyester polymers for high UV resilience and strong abrasion resistance in fresh and saline water environments — significantly more stable than nets made from recycled polymers.
Smaller graded rock fills reduce flow velocities by absorbing water energy into the interstitial spaces between rocks. Those same spaces enhance habitat for invertebrates, accrete fines and gravels, and let native vegetation establish naturally over time.
Nearly a million rock bags have been deployed in applications around the globe — from bridge piers and shoreline protection to artificial reefs and temporary work surfaces.
Decades
In-water design life
30+
Year UV resistance
90%
Labor savings

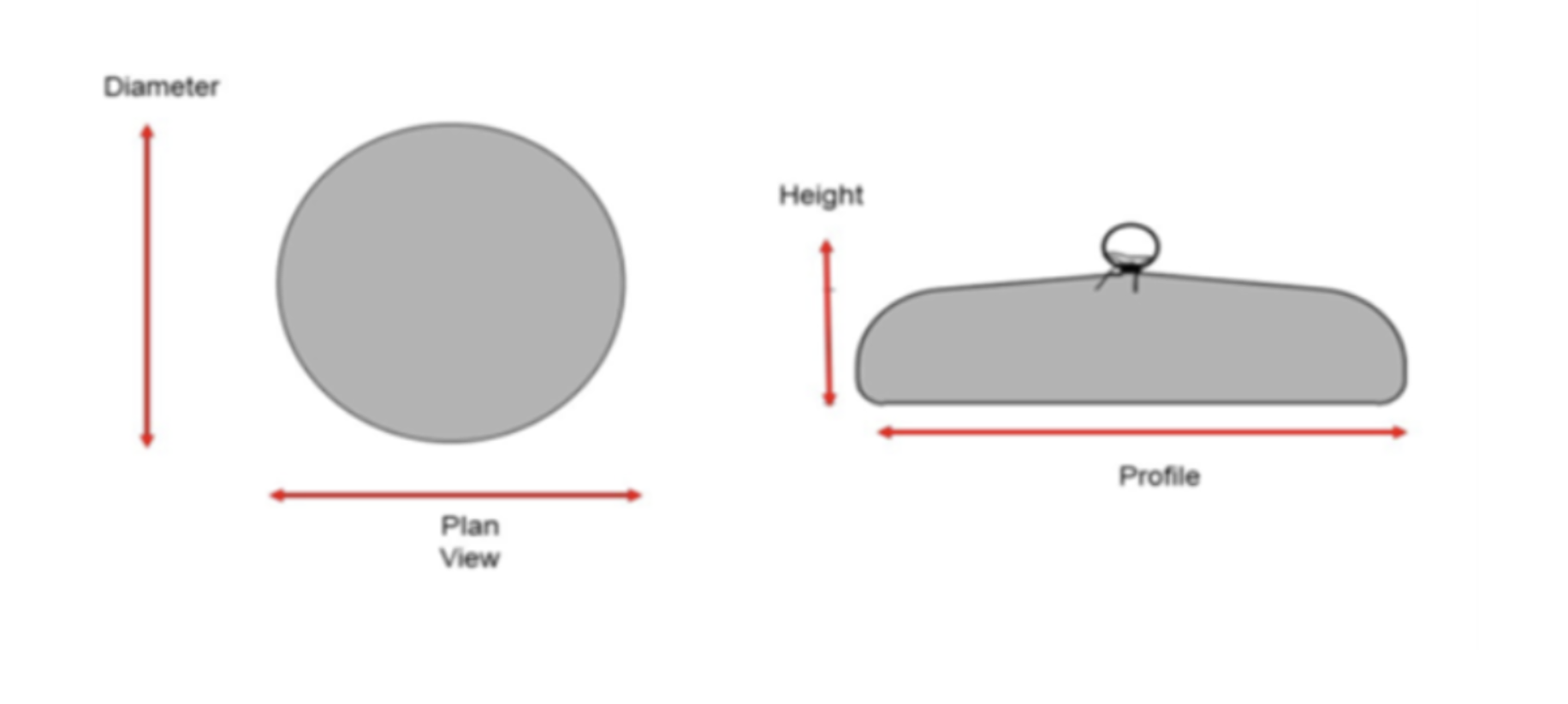

Technical Diagram — 4-Ton Bag
DWG-001 · Rev. C
Scale: NTS · All dimensions nominal
Read the spec sheet
Why Specify Texas Tuff Rock Bags
Engineered for fast, low-impact deployment.
Built on decades of soil bioengineering experience and proven on nearly a million bags deployed worldwide — solving scour and erosion problems that gabions, rip rap, and concrete revetments can't.
Install in flowing water
Deploy in flowing water or fully underwater — eliminating the need for coffer dams and water-diversion works.
No site preparation
Conforms to existing surfaces with little to no foundation prep — saving days on the schedule and dollars on the budget.
Single-point lifting
Highly controlled deployment via a single lifting point gives operators precise placement — even in tight or sensitive sites.
Habitat-enhancing
Interstitial voids between rocks support invertebrates, accrete fines and gravels, and let native vegetation establish.
Virgin polymer mesh
High UV resilience and strong abrasion resistance in fresh and saline water — significantly more stable than recycled-polymer alternatives.
Size Comparison
Compare sizes side by side.
Texas Tuff Rock Bags are available in four standard weight classes plus a custom build for project-specific applications. Each size is engineered for different flow velocities, depths, and loadings.
| Attribute | 1-Ton |
Most specified
2-Ton | 4-Ton | 8-Ton | Custom |
|---|---|---|---|---|---|
| Volume | 0.6 m³ | 1.13 m³ | 2.71 m³ | 6.0 m³ | Custom |
| Diameter | 1.5 m | 1.9 m | 2.4 m | 3.0 m | Custom |
| Mesh aperture | 25 mm | 25 mm | 25 mm | 50 mm | Custom |
| Mesh layers | Single | Double | Double | Quad-layer | Custom |
| Grouped current resistance | ~13.1 ft/s | 15.4 ft/s | 17.4 ft/s | 19.4 ft/s | Custom |
| Best for | Light scour, small streambanks, residential and lakefront projects. | Most-specified size — streambanks, shoreline revetment, and light-to-moderate scour. | Heavy-civil size — bridges, riverbanks, and port toes in higher-energy conditions. | Offshore, oil & gas, and severe-current coastal applications. | Project-specific applications where standard sizes don't fit. Talk to engineering for sizing. |
| View specs | View specs | View specs | View specs | Talk to engineering |
Not sure which size?
We'll recommend a size based on your flow velocity, depth, and application.
Need full specifications?
Download the complete spec sheet for any size — PDF for project documentation.
Where We Deploy
Where Texas Tuff Rock Bags Are Used
Eight environments where Texas Tuff Rock Bags outperform riprap and gabions — from inland streambanks to offshore subsea cable protection.

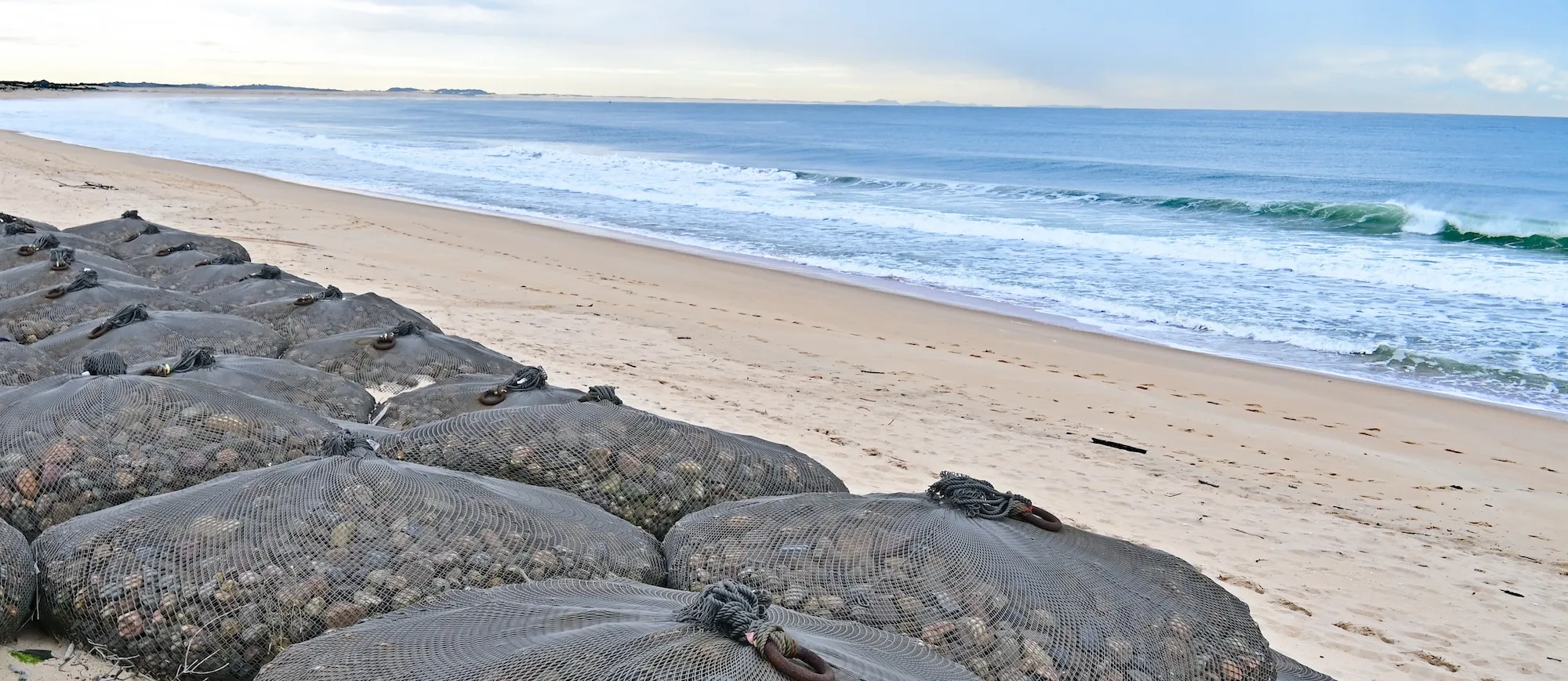

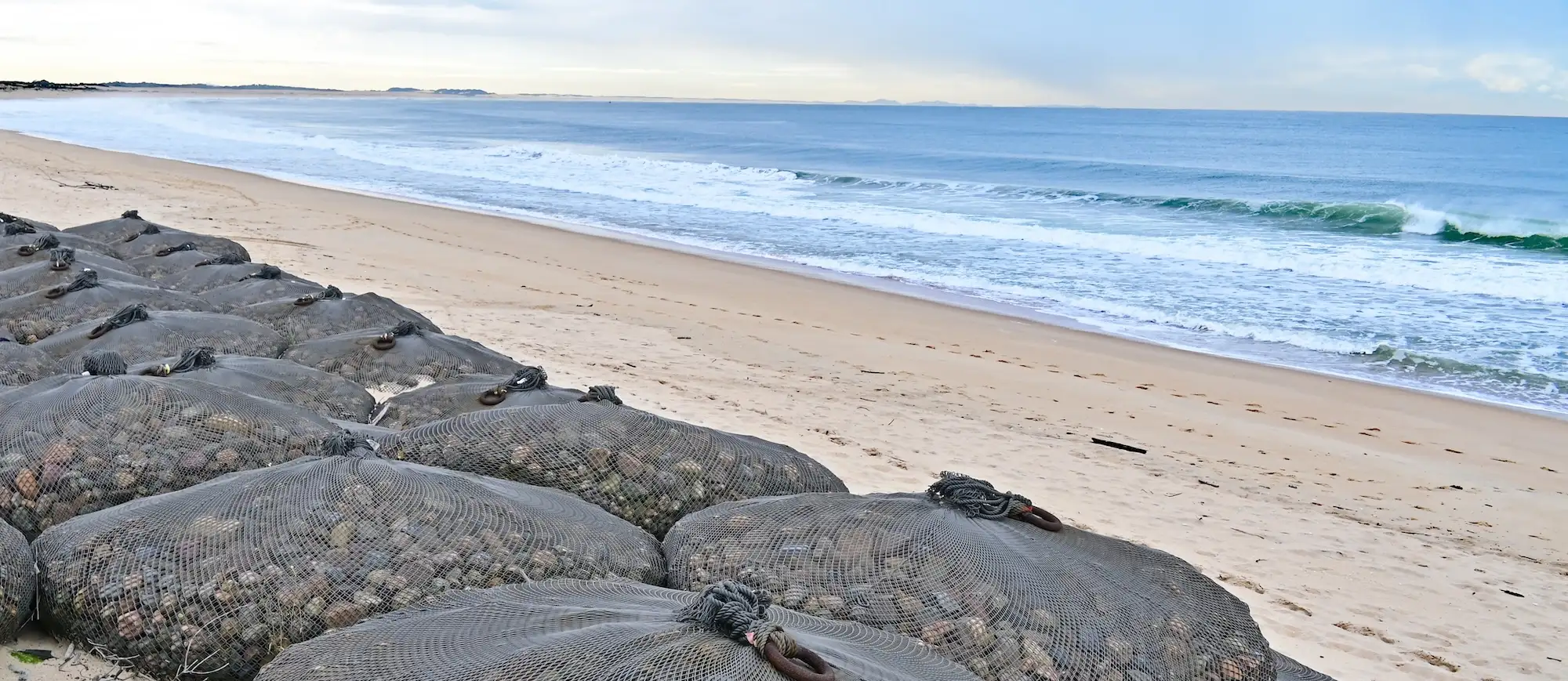

Coastal
Protect and rebuild beaches, dunes, and shoreline structures; build groynes for wave reduction.

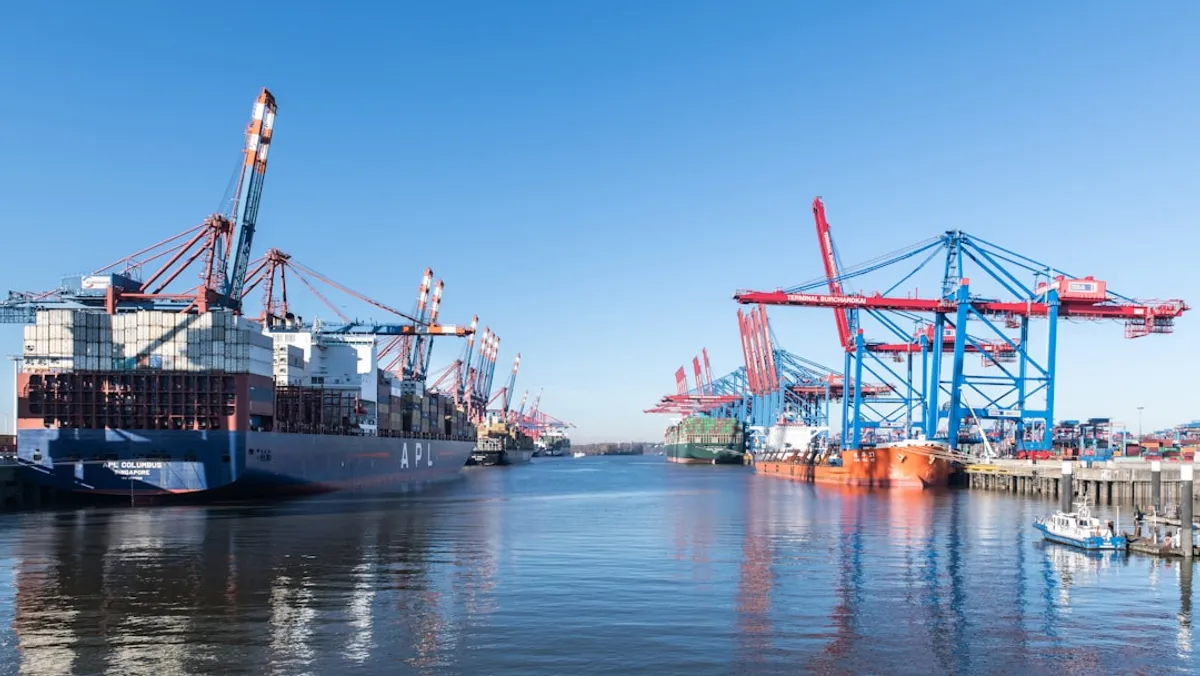

Marine & Ports
Defend port berths, terminal walls, and harbor infrastructure from propeller-wash scour and tidal erosion.
Bridges
Armor bridge piers, abutments, and embankments against scour — faster and more flexible than riprap.

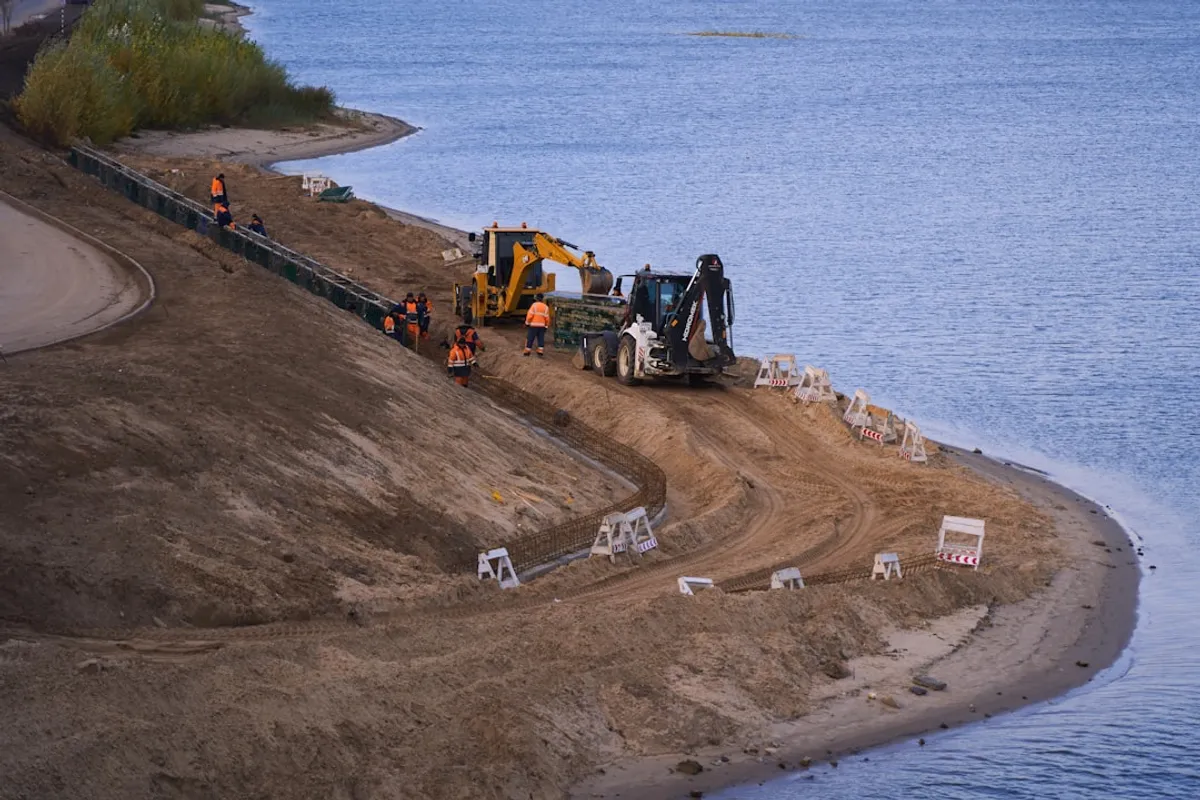

Roads & Rail
Stabilize and repair road and rail embankments after storms or for permanent erosion control.
Rivers & Streambanks
Stabilize riverbanks and streambanks in high-flow and meander-erosion conditions.

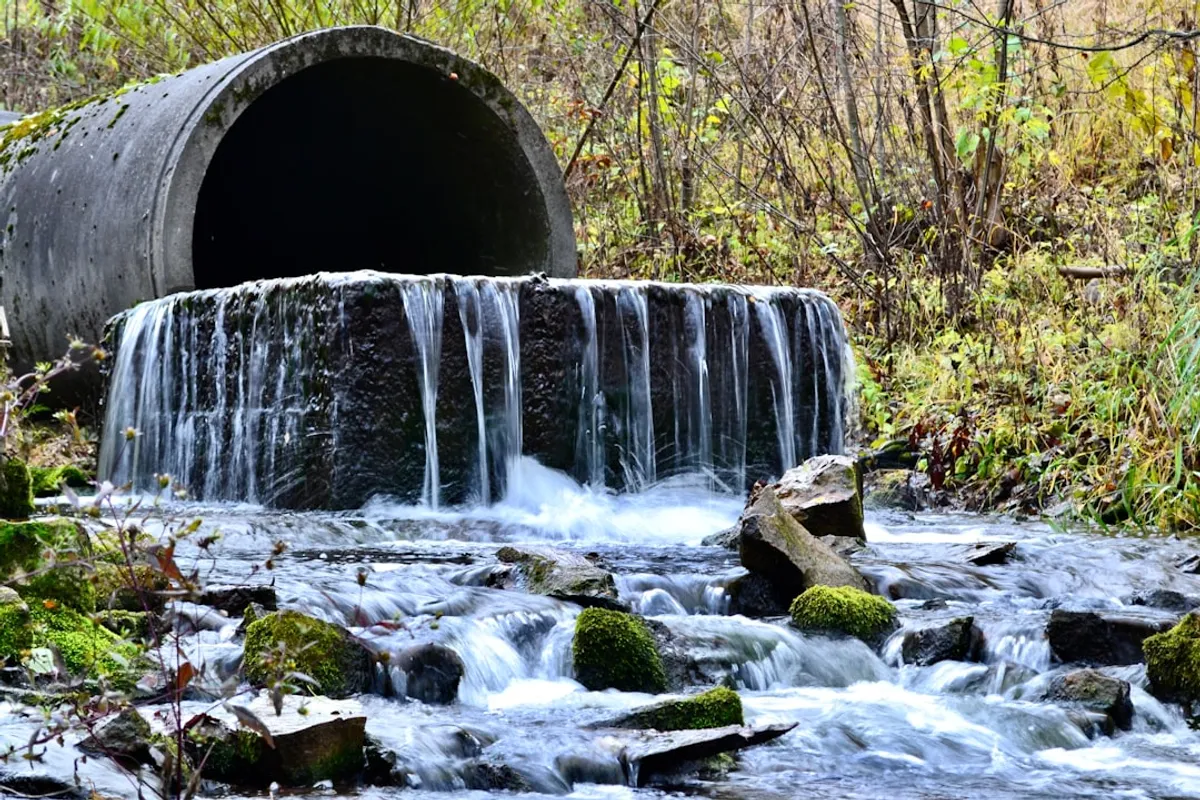

Stormwater & Drainage
Protect stormwater channels, culvert inlets and outfalls, and drainage embankments.
Offshore
Protect offshore cables, pipelines, piers, and piles for oil & gas and offshore wind.
Emergency Response
Ship and deploy in days for storm, flood, and scour emergencies — stocked inventory, fast lead times!
Industries
Built for the engineers and operators who specify infrastructure.
Texas Tuff Rock Bags are specified across civil, marine, energy, aquaculture, and private-property projects — every site where scour or erosion threatens the structure.
DOT & Municipal
Bridge scour, embankment stabilization, and culvert protection on state DOT and municipal procurement projects.
Learn more

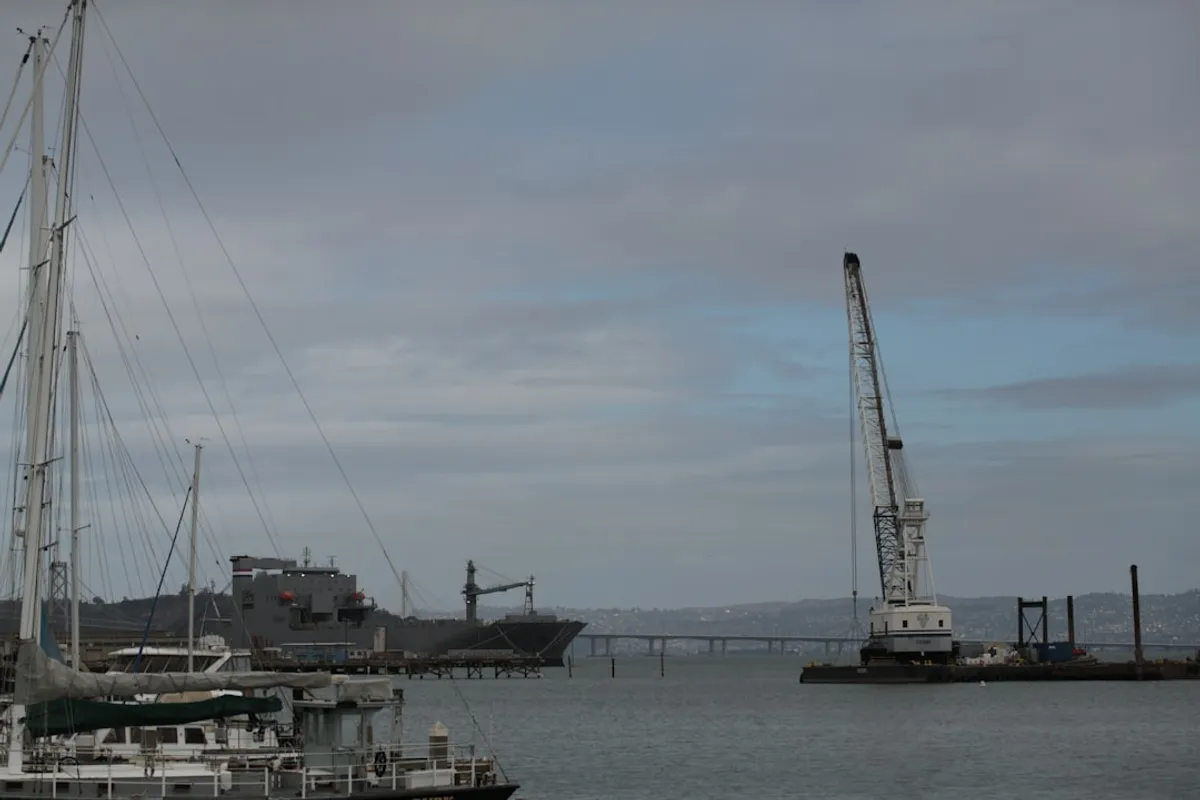

Civil & Marine Contractors
Scour protection, revetments, and shoreline armor for permanent civil and marine infrastructure builds and repairs.
Learn more
Offshore Wind
Subsea cable protection, monopile scour armor, and seabed stabilization for US offshore wind farms.
Learn more

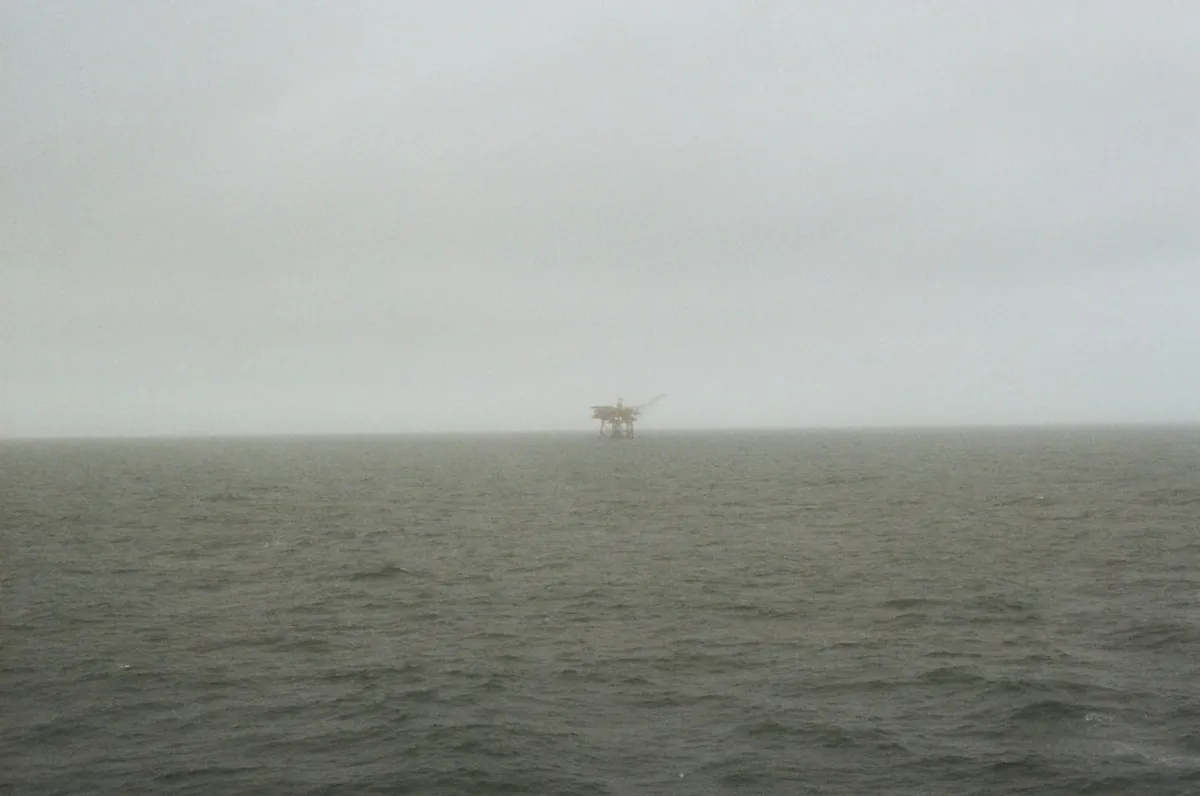

Oil & Gas
Pipeline crossings, platform foundation protection, and seabed armor for offshore and onshore oil & gas operations.
Learn more
Aquaculture
Pond bank stabilization, fish farm pen anchoring, and shoreline protection for aquaculture facilities.
Learn more
Property & HOA
Private waterfront, lakefront residences, and HOA-managed community shoreline erosion protection.
Learn more
Who We Work With
Engineers, agencies, contractors, and property owners across the US.
From state DOT bridge programs and USACE emergencies to private waterfront — we build long relationships with the teams who specify and place rock armor.
Government & Public Sector
State DOT contracts and municipal procurement.
- State DOTs
- USACE
- Municipalities
- Port authorities
Engineering & Contractors
The teams who design, specify, and build the work.
- Civil engineers
- Marine engineers
- Marine contractors
- EPC contractors
- Emergency-response contractors
Industry & Property
Energy, agriculture, and private property owners.
- Offshore wind developers
- Oil & gas operators
- Pipeline operators
- Aquaculture facilities
- HOAs & property owners
Projects
Real infrastructure, protected.
Bridge piers, port toes, riverbanks, weir blocks, and subsea pipelines — see how Texas Tuff Rock Bags performed on the ground for civil, marine, and fisheries teams across the US and internationally.
Completed · 2023
Featured

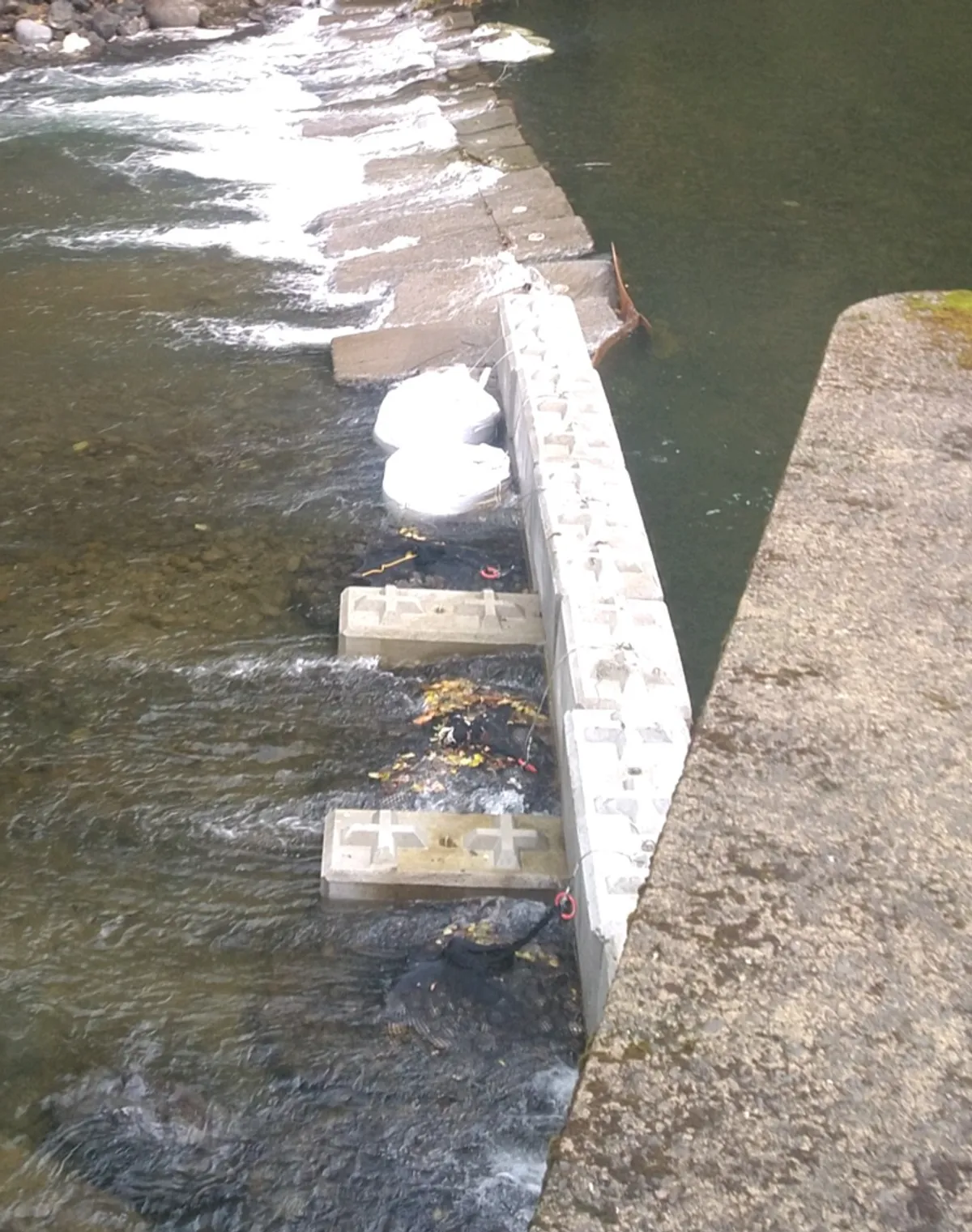

Washington DFW — Sol Duc Temporary Weir
- Location
- Sol Duc River, WA
- Year
- 2023
- Application
- Fisheries · Weir Block
Temporary weir on the Sol Duc River for the Washington Department of Fish & Wildlife — rock bags placed as weir block for stream flow management at the fishery.
Read case study
Rains County, TX · —
DOT · Bridge Scour

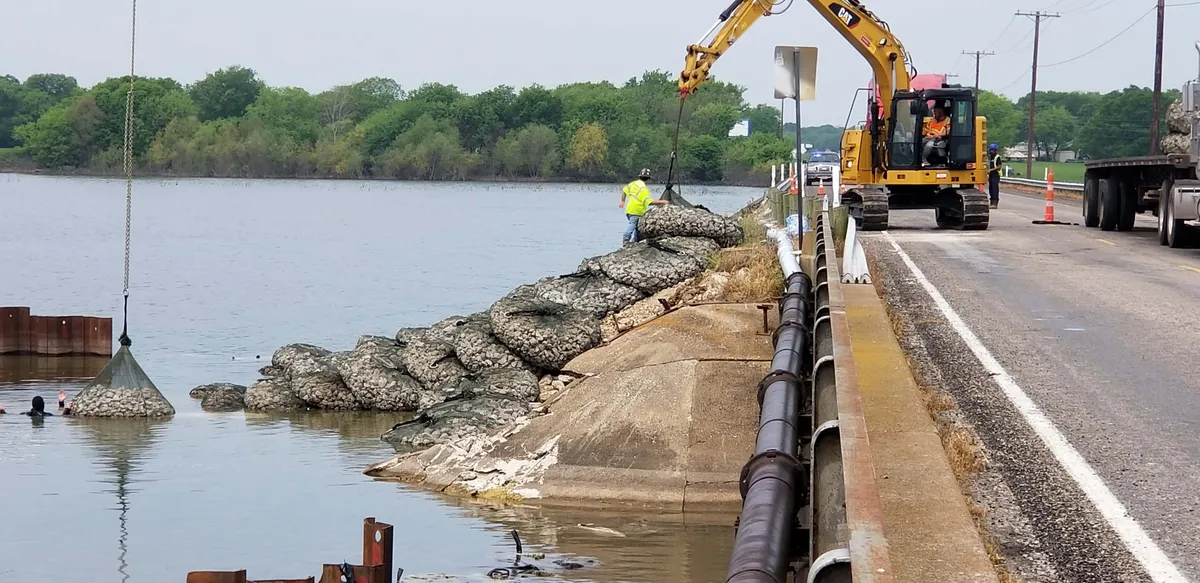

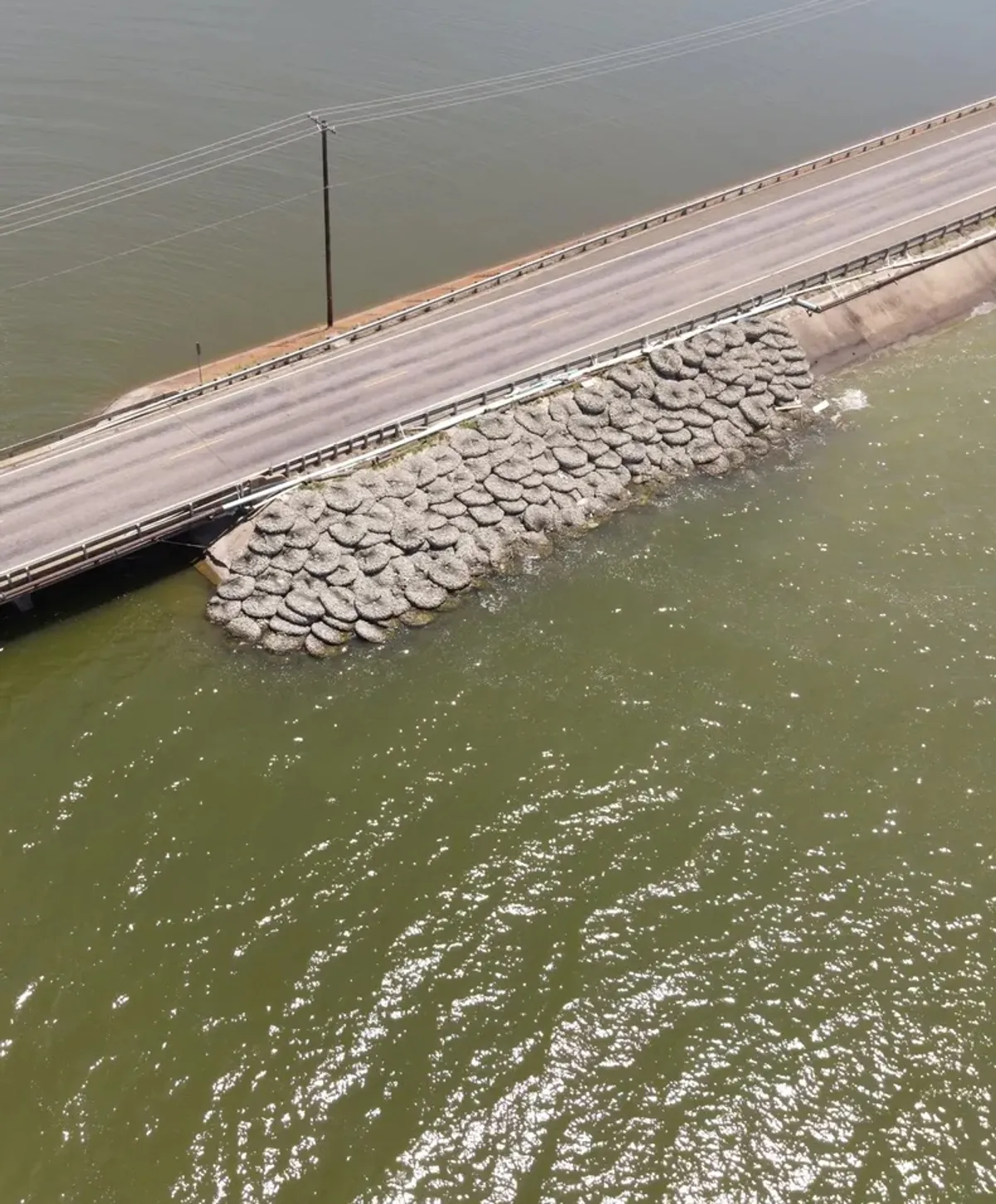

TxDOT Rains County — Texas
Texas DOT crossing in Rains County — when a coffer dam couldn't hold back seepage for the specified gabions and riprap, 2-ton Texas Tuff Rock Bags were substituted to armor the embankment foot and protect the bridge.
Read case
Panama · 2023
Coastal Construction

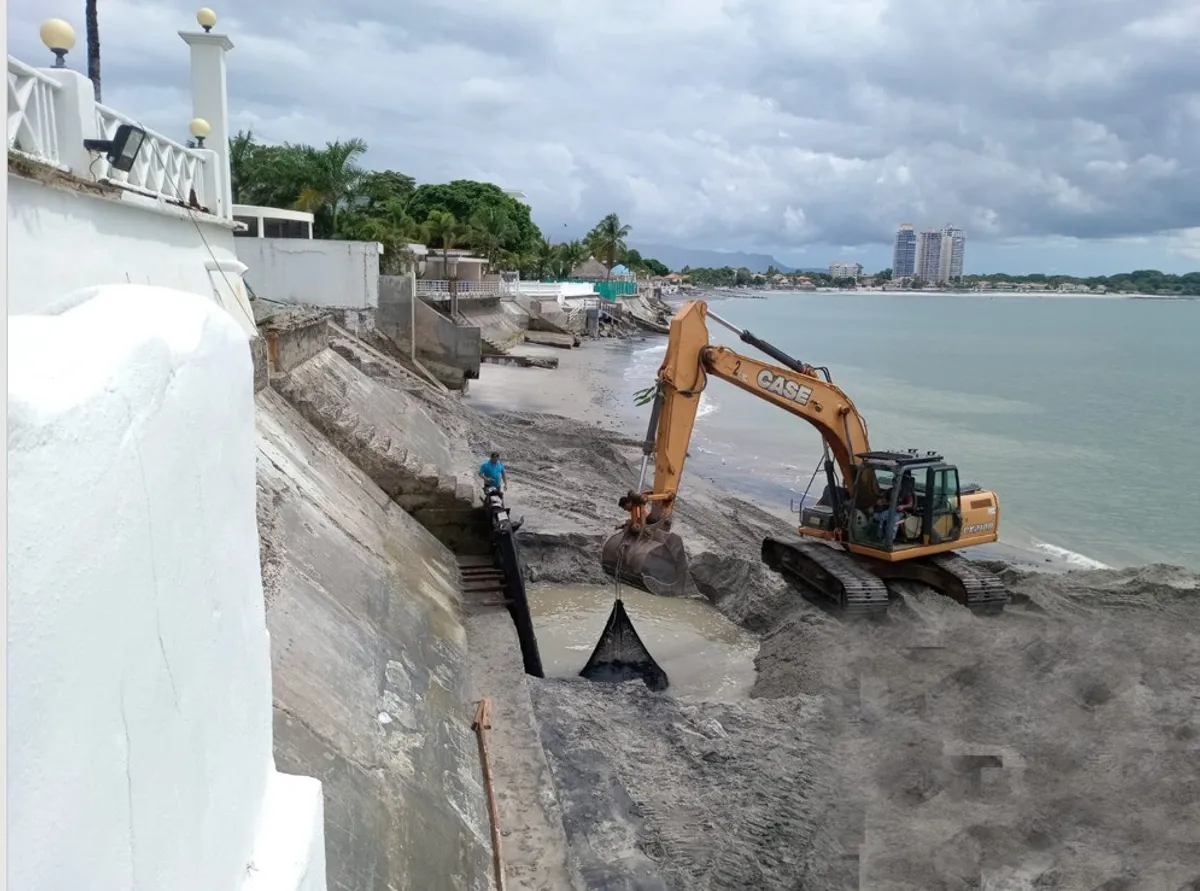

Panama Coastal Construction
International coastal construction in Panama using Texas Tuff Rock Bags for shoreline armor and structural protection.
Read case
New Zealand · 2024
River & Bridge Revetment

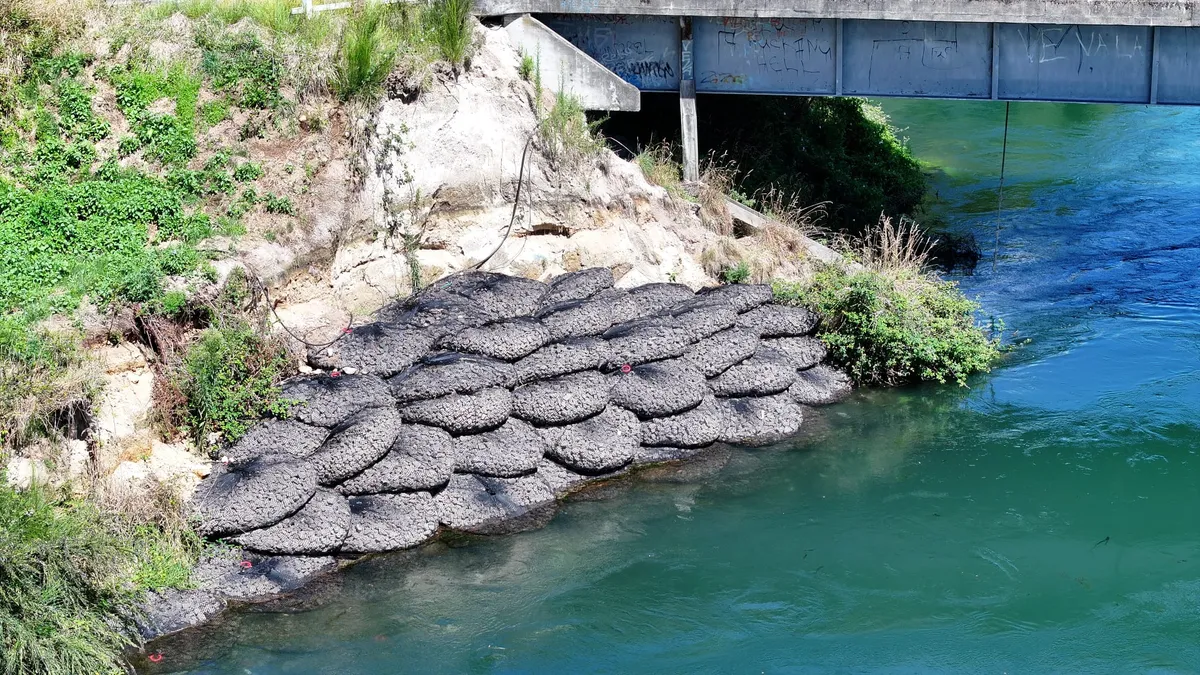

River & Bridge Revetment — New Zealand
Riverbank and bridge revetment in New Zealand — Texas Tuff Rock Bags placed to protect bridge approaches and stabilize the bank against scour.
Read case
Get in touch
Get a Quote in One Business Day
Tell us about your project — application, size, quantity, location, and timeline. Our engineering team responds within one business day with sizing, lead time, and pricing.
Sizing recommendation
Lead time
Pricing
